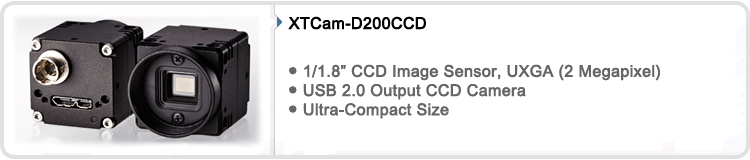

Model No.
XTCam-D200CCD
-
Resolution
UXGA
-
Frame Rate
15fps
-
Effective Pixels
1628 x 1236
-
Sensor Size
1/1.8"
-
Cell Size
4.4 x 4.4μm (HxV, μm)
-
Imaging Area
5.4x7.1x8.9 (HxVxD, mm)
-
Sensor
ICX274AQ
-
Lens Mount
C-Mount
-
Bit Depths
RAW 8/10/12bit
-
Interfaces
USB2.0
-
Exposure Times
Minimum exposure time : 27.2ns(UXGA)
Maximum exposure time : 1/fps(free-run mode)、Any time(trigger mode) -
Communication Functions
Controlled by software
-
Lens Mount
CS-Mount, C-Mount
-
Optical Filter
with infrared cut filter (color model only)
-
Power
USB supply +5V(+4.4~+5.25V
-
External Dimensions
C Mount type:28(W)×28(H)×42(D)mm、approx
-
Weight
45g
![pinassignments.jpg pinassignments.jpg](http://www.saramsoft.com/files/attach/images/617/635/e3cde0cbbd20f39d09ffbba3e27cadd3.jpg)
![도면.jpg 도면.jpg](http://www.saramsoft.com/files/attach/images/617/635/fa95351125d2732d29f6b3287391cfc4.jpg)
